Belgian Liege gunmakers
(Six volumes by alphabetical order - hardbound books)



6mm Velodog 7.5mm Nagant .320 Bulldog .32 Colt, .32 S&W, .38 S&W, .38 Long Colt .380 "Bulldog", .41 Long Colt, 10.4 Italian Bodeo, 10.6 Reichrevolver (or 44 Russian), .450 Webley reloading
kits and components prices

USER Manual click here

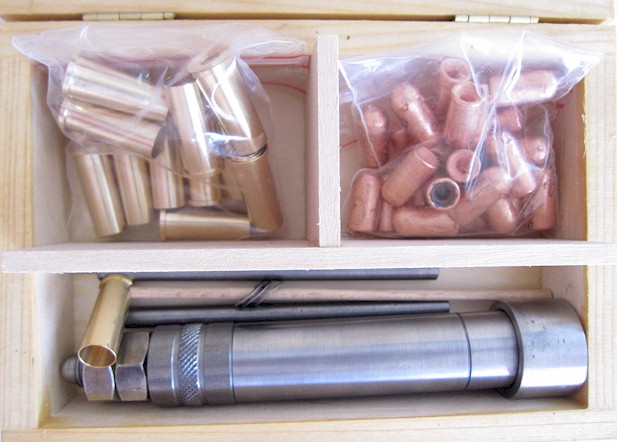

Kit for .380 CF short or long  (caliber .320 CF short also available)

Content :

One set of tools - 12 cartridge cases - 25 lead bullets - 25 primer caps
(primer caps removed when shipped to certains countries without reduction of price)



Tools furnished : Basement (1), Recalibrator (2), Bullet seating rod (3), Pushing rod (4), Primer cap ejector (5), Power measure (6)


Caliber 6mm Velodog

Content of the boxed kit (Starter kit): All the necessary tools for reloading + 12 cartridge cases + 25 bullets.

Case length = 29.50 mm
Type of primer used: Small pistol
Bullet weight :
2.98 grams

Note, primers are not shipped.


ITEM #A-Velo : Starter kit for 6mm Velodog
Approx weight 600 gr - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B-Velo : 12 empty shells for 320 CF Short
Approx weight 30 gr - Price
US$ 57.00 + Shipping


ITEM #C-Velo : 25 bullets
Approx weight 75 gr - Price
US$ 19.00 + Shipping


ITEM #D-Velo : 100 bullets
Approx weight : 300 gr - Price US$ 52.00 + Shipping



Caliber 7.5mm Nagant
(Swedish model 1887 - Norvegian model 1893 - Swiss model 1882)


Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.




Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.

Shell dimension: case length = .354" to .327 (mouth) - Rim diam. = .409" - case length = .885"
Type of primer used: Small pistol
Bullet weight : 8 grams (diam. = .312" - total length = .665")

Note primers are not shipped.


ITEM #A-Nag : Starter kit for 7.5mm Nagant
Approx weight 700g - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B-Nag : 12 empty shells for 320 CF Short
Approx weight 36g - Price
US$ 57.00 + Shipping


ITEM #C-Nag : 25 lead bullets
Approx weight 180g - Price
US$ 19.00
+ Shipping


ITEM #D-Nag : 100 lead bullets
Approx weight 720g - Price
US$ 52.00
+ Shipping


Caliber .320 and .32


Case dimensions for the .320 caliber :
Case diam. = .315" - Rim diam. = .370" - case length = .650" - Overall length = 1.025"



bullet weight : 6 grams (base diam. = .288" - total length .511")



ITEM #A32CF-S : Starter kit for 320 CF Short
Approx weight 700g - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B32CF-S : 12 empty shells for 320 CF Short
Approx weight 36g - Price
US$ 57.00 + Shipping


ITEM #D32CF-S : 25 lead bullets
Approx weight 140g - Price US$
19.00 + Shipping


ITEM #E32CF-S : 100 lead bullets
Approx weight 570g - Price US$
52.00 + Shipping




320 CF short  test kit : $33.00 (+ shipping)

To make an order please send an email   here: Pro1258@skynet.be
When ordering mention the following item reference : 320CFS-TKIT(33)



.32 Long Colt


ITEM #A32LC : Starter kit for .32 Long Colt
Approx weight 700g - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B32LC : 12 empty shells for .32 Long Colt
Approx weight 48g - Price
US$ 57.00 + Shipping


ITEM #E32LC : 100 lead bullets (.312''/7.90mm - 86 grains/5.60 grams)
Approx weight 560g - Price US$
50.00 + Shipping



.32 S&W (Smith & Wesson)


ITEM #A32SW : Starter kit for .32 S&W
Approx weight 700g - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B32SW : 12 empty shells for .32 S&W
Approx weight 48g - Price
US$ 57.00 + Shipping


ITEM #E32SW : 100 lead bullets (plain lead - .313''/7.95 mm - 92 grains/5.95 grams)
Approx weight 595g - Price US$
50.00 + Shipping



32 S&W LONG (Smith & Wesson)


ITEM #A32SW-L : Starter kit for .32 S&W-L
Approx weight 700g - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B32SW-L : 12 empty shells for .32 S&W-L
Approx weight 48g - Price
US$ 57.00 + Shipping


ITEM #E32SW-L : 100 lead bullets (plain lead - .313''/7.95 mm - 92 grains/5.95 grams)
Approx weight 595g - Price US$
50.00 + Shipping



.38 S&W (Smith & Wesson)


ITEM #A38SW : Starter kit for .38 S&W
Approx weight 700g - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B38SW : 12 empty shells for .38 S&W
Approx weight 48g - Price
US$ 57.00 + Shipping


ITEM #E38SW : 100 lead bullets (hollowed base and copper jacket - .360''/9.14''- 123 grains/ 8.00 grams)
Approx weight 800g - Price US$
50.00 + Shipping



.38 Long Colt


ITEM #A38LC : Starter kit for .38 LC
Approx weight 700g - Price
US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B38LC : 12 empty shells for .38 LC
Approx weight 48g - Price
US$ 57.00 + Shipping


ITEM #E38LC : 100 lead bullets (plain lead - .375''/9.5 mm - .358''/9.0 mm - 155 grains/10.40 grams)
Approx weight
1040g - Price US$ 50.00 + Shipping



Caliber .380 Bulldog




Case and bullet dimensions for the .380 caliber :
.380 long: Case diam. = .375" - Rim diam. = .430" - case length = .960" - Overall length = 1.390"
.380 short: Case diam. = .375" - Rim diam. = .430" - case length = .700" - Overall length = 1,145"



bullet weight : 10 grams (base diam. = .358" - total length .708")


ITEM #A38CF-L : Starter kit for .380 CF / .38 Colt Long
ITEM #A38CF-S : Starter kit for .380 CF/ .38 Colt Short
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.

Approx weight 750g - Price US$ 320.00 + Shipping


ITEM #B38CF-L : 12 empty shells for .380 CF Long
ITEM #B38CF-S : 12 empty shells for .380 CF Short

Approx weight 50g - Price US$ 57.00 + Shipping


ITEM #D38CF : 25 lead bullets

Approx weight 320g - Price US$ 18.00 + Shipping


ITEM #E38CF : 100 lead bullets

Approx weight 940g - Price US$ 50.00 + Shipping


.380 TEST KITS


380 CF Short test kit : $33.00 (+ shipping)

To make an order please send an email   here: Pro1258@skynet.be
When ordering mention the following item reference : 380CFS-TKIT(33)



.380 CF Long test kit : $33.00 (+ shipping)

To make an order please send an email   here: Pro1258@skynet.be
When ordering mention the following item reference : 380CFL-TKIT(33)

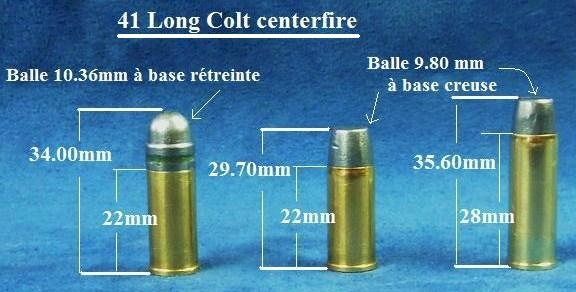

.41 Long Colt

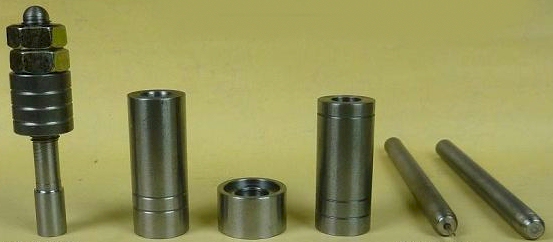

Set of tools

Pushing rod for the bullet seating, main cylinder to guide the bullet in the shell and also recalibrate the shell after firing, basis block on which is put the main cylinder, second cylinder for crimping purpose when a hollow bullet is used, primer cap ejection rod, pushing rod to expell the resized shell or the crimped cartridge from the cylinders.


1.34" - 1.17" - 1.40" overall length

ITEM #A41LC : Starter kit for .41 Long Colt with two length of cartridge case.
Includes : Set of tools + 15 hollow bullets + 15 plain bullets with recessed base + 6 short shells of 22mm - .86" - length + 6 long shells of 28mm - 1.10" - length. Allows to create three different cartridges as shown above. Overal length : 1.34" - 1.17" - 1.40"

Approx weight 800g - Price US$ 320.00 + Shipping

Please note that primer caps (of standard large pistol type) are not provided.


ITEM #B41LC 22 : 12 empty shells of 22mm length in .41 LC caliber
Approx weight 50g - Price US$ 57.00 + Shipping

ITEM #B41LC 28 : 12 empty shells of 28mm length in .41 LC caliber
Approx weight 50g - Price US$ 57.00 + Shipping

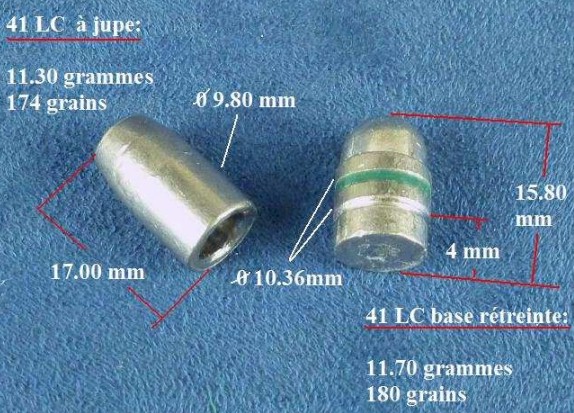

ITEM #E41LC Plain : 100 lead bullets of plain type - diameter of 10.36mm (.407") - weight 11.70 grams or 180 grains
Approx weight 1190g - Price US$ 65.00 + Shipping

ITEM #E41LC Hollow : 100 lead bullets of hollow type - diameter of 9.80mm (.385") - weight 11.30 grams or 174 grains
Approx weight 1130g - Price US$ 65.00 + Shipping


10.4 mm Italian Bodeo revolver

Generic user manual


Content of the boxed kit:
All the necessary tools for reloading + 12 cartridge cases + 25 bullets.
Tools and cartridge components are similar for both calibers

ITEM #A-Bod : Starter kit for 10.40 Italian Bodeo revolver
Approx weight
800g - Price US$ 320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.



Length: 19.95mm.
Rim diam: 12.90mm.
Base diam: 11.71mm.
Mouth diam: 10.70mm

ITEM #B-Bod : 12 empty shells for 10.40/10.35mm Bodeo revolver
Approx weight 70g - Price US$ 57.00 + Shipping



ITEM #E-Bod : 100 greased lead bullets (weight: 11.20 grammes / 172 grains) May also be used for : 44 Webley, 442 British Revolver, 44 S&W American
Approx weight 1600g - Price US$
57.00 + Shipping


10.6 Reichrevolver (or 44 Russian)

Generic user manual


Content of the boxed kit:
All the necessary tools for reloading + 12 cartridge cases + 25 bullets.
Tools and cartridge components are similar for both calibers

ITEM #A44 : Starter kit for .44 Russian or 10.6 Reichrevolver
Approx weight 700g - Price US$
320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B44 : 12 empty shells for .44 (or 10.6 Reichrevolver)
Approx weight 70g - Price US$ 57.00 + Shipping


ITEM #E44 : 100 greased lead bullets (caliber .429" or 10.90mm -
246 grains/15.90 grams)
Approx weight 1600g - Price US$
69.00 + Shipping


.450 (.455 & .460) Webley

.450 reloading kit user manual


Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.



.450 reloading kit user manual


ITEM #A450 :
Starter kit for .450 Webley
Approx weight 700g - Price US$
320.00 + Shipping
Content of the boxed kit: All the necessary tools for reloading + 12 cartridge cases + 25 bullets.


ITEM #B450 : 12 empty shells for .450 (.455 & .460) Webley
Approx weight 70g - Price US$ 57.00 + Shipping


ITEM #E450 : 100 lead bullets (Copper jacket and hollowed base -
171 grains/11.10 grams)
Approx weight 1100g - Price US$
74.00 + Shipping


How to use the test kits

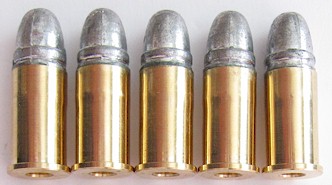

The test kits can be used to make dummy catridges. Just have just to insert a primer cap in the case pocket (or leave the cartridge without primer). You can also make firable cartridges by adding a load of black powder. Here below are the logical steps to perform.

1 - Loading of the black powder

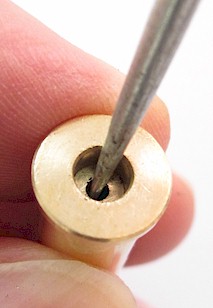

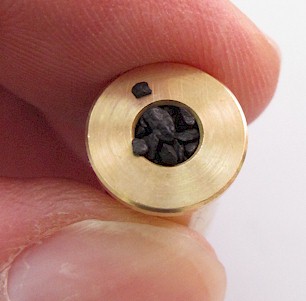

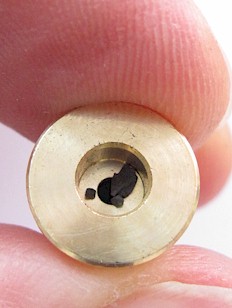

As the bullet is already installed, the powder (of black type only) must pass through the hole in the bottom of the primer pocket. Even when using a coarse powder, it should pass through the hole by slightly tapping the bullet against a hard surface.



When no more powder can enter in the case, verify that the case is full by inserting the tip of a long needle against the powder.

You have now to install the primer as explained in the user manual : http://hlebooks.com/380cfkit/380cfkit.htm


How to order

Each item has a reference number (A38CF-L, B38CF-S, ...) and is priced.

When contacting us for an order, please mention your personal coordinates (name and address).

Then mention the list of items you want to purchase with the corresponding reference numbers.

The shipping costs will be computed, and we will let you know the amount and type of shipping.

On confirmation of your purchase, we will email you an invoice through our Paypal account (the specific fees are added to the total cost).

You can also pay through Western Union International Money Order, or through bank transfer.
